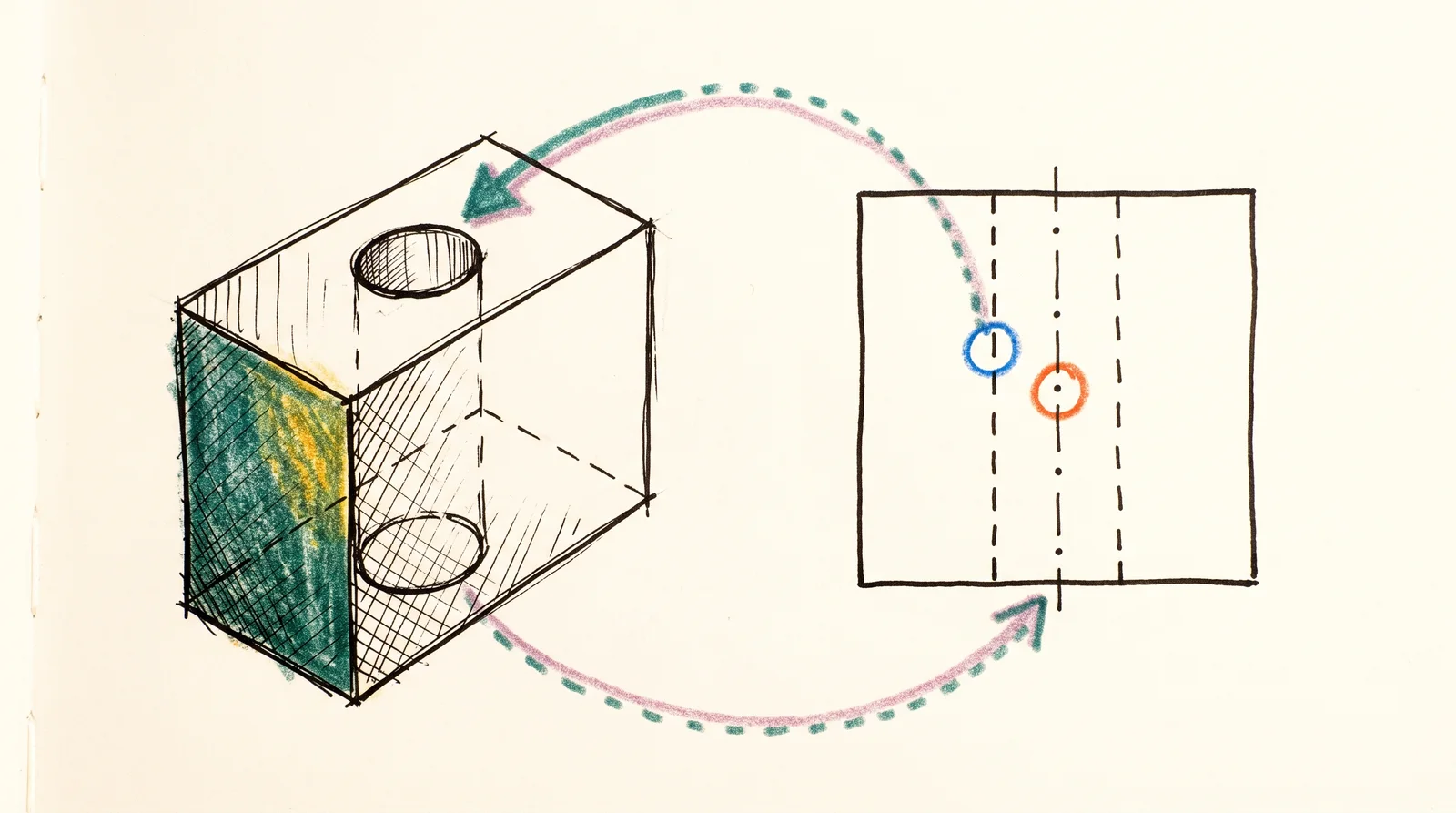

Technical drawing is a notation rather than a picture, and like any notation it only works because everybody agrees what the marks mean. Line weight and line type carry information: solid for a visible edge, dashed for something hidden behind, chain-dotted for a centre line.
